April 13, 2026

Vitsoe 606 App

This is a very rough prototype — a proof-of-concept experiment to see if the constraint system and drag-and-drop could work at all. It lacks lots of design refinement, and plenty of the 606 system isn't covered. Try it here.

The Vitsoe 606 is Dieter Rams' 1960 modular shelving system — vertical e-tracks on the wall, with shelves, cabinets, and desks hung between them. Planning a unit usually means sketching, emailing Vitsoe's planners, and waiting. The 606 Designer lets you lay one out yourself in the browser and see what it costs as you go.

Real constraints - Narrow (66.7cm) and wide (91.2cm) bays, pin holes every 7cm, four e-track lengths — the grid enforces the actual system's rules
Drag and drop - Pull shelves, cabinets, desks, and tables from the library into a bay; click any element to swap, replace, or remove it
Smart resizing - Move an e-track from wide to narrow spacing and every element in that bay swaps to its narrow variant automatically
Cost estimate - A running parts list with per-item and total pricing, updated as you design
Export - PNG for sharing, SVG for vectors, or a PDF spec sheet with dimensions and an optional price list

The 606 Designer interface: a sidebar with cost estimate and element library on the left, and a three-bay shelving configuration with shelves, a desk, and a two-drawer cabinet drawn in isometric line style on the canvas — A three-bay unit with shelves, desk shelf, and cabinets — $4,835 all in

Every element is an isometric SVG line drawing in the style of Vitsoe's own assembly instructions. Because the isometric depth makes each element a different pixel width, everything right-aligns to its e-track so the perspective stays consistent across the whole unit. Bay widths and total dimensions are labelled on the canvas and counter-scale against zoom so they stay readable.

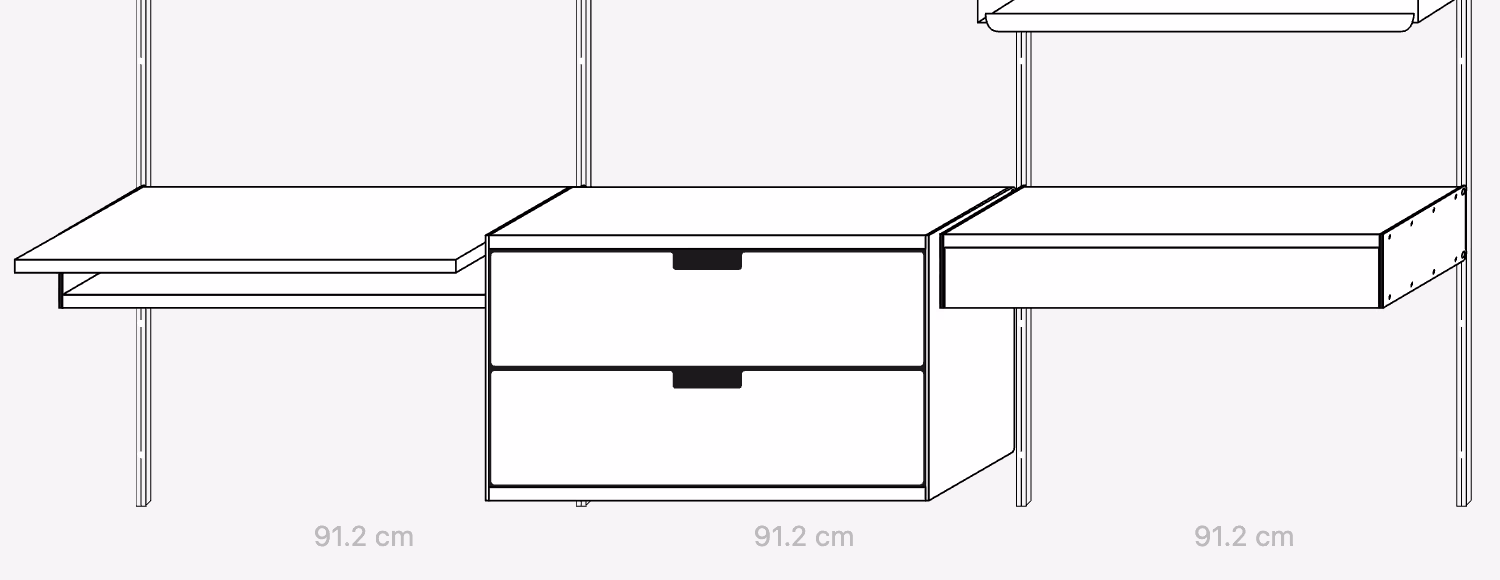

Close-up of the canvas showing a desk shelf, a two-drawer cabinet, and a drawer shelf hung between e-tracks, with 91.2 cm bay labels underneath — Elements snap to the e-track pin holes, every 7cm

The cost estimate panel listing e-tracks, shelves, and cabinets with per-item prices and a $4,835 total — The parts list prices itself as you design

The whole thing is vanilla HTML, CSS, and JavaScript — no framework, no build step, no backend. State, rendering, drag and drop, and the export pipeline live in a single file, and the element library is auto-discovered from a folder of SVGs following a {category}-{width}-{option} naming convention, so adding a new element is just dropping in a drawing. The only outside dependency is jsPDF for the spec sheet. Built with Claude.

Not affiliated with Vitsoe — it's a fan project, and the prices are estimates. Try it here, or take the source from GitHub.
